Mass-Lam Plate And Pin-Lam Plate Printed Circuit Board PCB Lamination Steel Plate MKSP-PCB-400
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MKSP-PCB-400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | export package |
| Delivery Time: | 15days after getting the prepayment |
| Payment Terms: | Western Union,T/T,D/P,D/A,L/C |
|
Detail Information |
|||
| Steel Material:: | Japanese NAS630 And NAS301 (NAS630 Is Mostly Chosen Or Used). | Conventional Thickness (mm):: | 1.6, 1.5, 1.8, 2.0mm |
|---|---|---|---|
| Work Temperature: | ≤400℃ | Average Thermal Expansion Coefficient (10-6/℃): | 10~12,15-17 |
| Conventional Dimensions Of PCB Lamination Steel Plate (L * W In Mm): | 1500*1295/1300*800/1295*787/1295*1613/1295*1143/1295*787/1285*750/1280*1120/1280*1070/1280*970/1270*1118/1270*1070/1143*660/673*571/660*508/24"*28" | Service Life:: | 8-10 Years (Note: After Repeated Usage, The Steel Plate Will Become Thinner. It Is Not Recommended To Continue Using It After The Plate Thickness Is Lowered To Less Than 1.3mm/the Steel Plate Thickness Between 1.3-1.6mm Should Ensure No Deformation Or Warp |
| Highlight: | Mass-Lam Plate PCB lamination steel,Pin-Lam Plate PCB lamination steel,MKSP-PCB-400 laminated steel plate |
||
Product Description

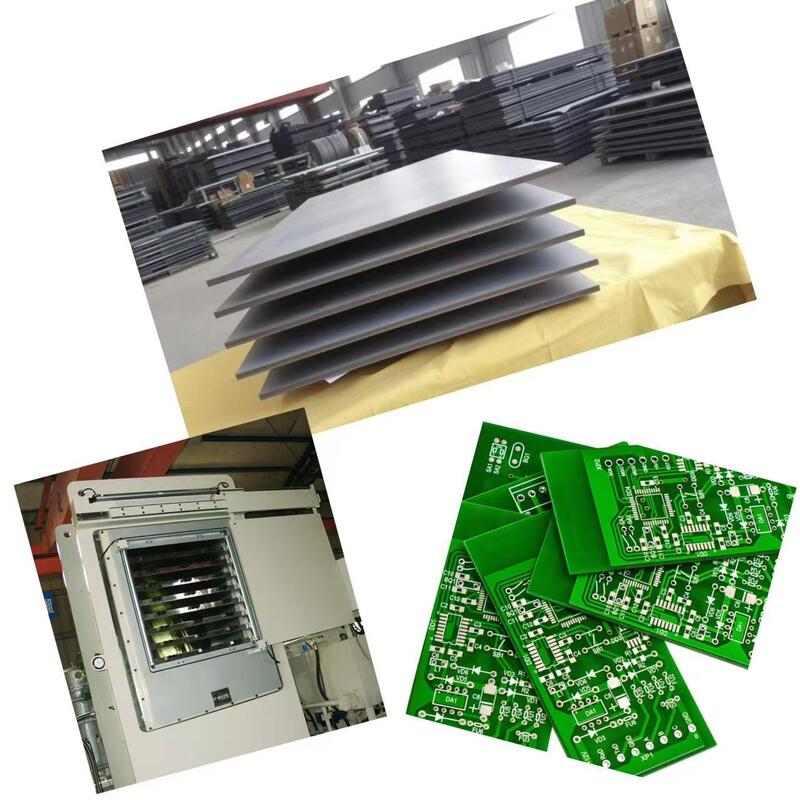

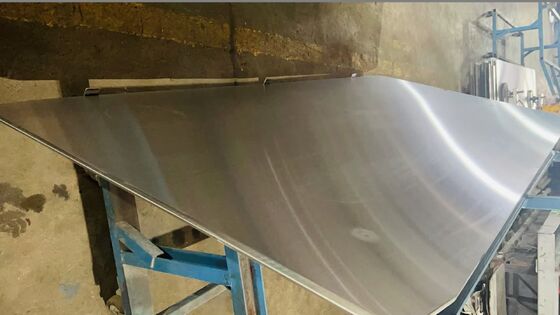

PCB Lamination Steel Plate MKSP-PCB-400
The MKSP-PCB-400 Printed Circuit Board Lamination Steel Plate is a high-precision, reliable solution specifically designed for PCB lamination processes. Manufactured using premium Japanese steel materials and advanced production techniques, this steel plate delivers exceptional performance in PCB laminators.
Product Overview
Our PCB Lamination Steel Plate has established itself as a mature and dependable component in PCB laminators. We specialize in providing high-precision laminated steel plates and partition steel plate series that meet the stringent requirements of PCB lamination processes.
Printed Circuit Boards serve as crucial components in the electronics industry, providing electrical connections between electronic components through conductive copper foil patterns on insulating materials. Our lamination steel plates support this critical manufacturing process with precision and reliability.
Key Features
- Manufactured from premium Japanese steel materials (NAS630 & NAS301)
- Advanced heat treatment technology and grinding manufacturing processes
- Minimal high-temperature warpage with extended service life
- Superior thermal conductivity and thermal expansion coefficient
- High corrosion resistance and exceptional hardness
- Compatible with various types of lamination steel plate washing machines
Technical Specifications
Steel Material: Japanese NAS630 and NAS301 (NAS630 primarily used)
Conventional Thickness: 1.6mm, 1.5mm, 1.8mm, 2.0mm
Service Life: 8-10 years (not recommended below 1.3mm thickness)
Standard Dimensions (L × W in mm): 1500×1295, 1300×800, 1295×787, 1295×1613, 1295×1143, 1285×750, 1280×1120, 1280×1070, 1280×970, 1270×1118, 1270×1070, 1143×660, 673×571, 660×508, 24"×28"
Conventional Thickness: 1.6mm, 1.5mm, 1.8mm, 2.0mm
Service Life: 8-10 years (not recommended below 1.3mm thickness)
Standard Dimensions (L × W in mm): 1500×1295, 1300×800, 1295×787, 1295×1613, 1295×1143, 1285×750, 1280×1120, 1280×1070, 1280×970, 1270×1118, 1270×1070, 1143×660, 673×571, 660×508, 24"×28"
Performance Parameters
| Parameter | NAS630 Mass-Lam | NAS630 Pin-Lam | NAS301 Mass-Lam | NAS301 Pin-Lam |
|---|---|---|---|---|
| Thickness | 1.0-2.5mm | 1.0-2.5mm | 1.0-1.8mm | 1.0-1.8mm |
| Width | ≤1300mm | ≤1300mm | ≤1060mm | ≤1060mm |
| Length | ≤2410mm | ≤2410mm | ≤3150mm | ≤3150mm |
| Thickness Tolerance | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
| Surface Roughness | Ra≤0.15μm Rz≤1.5μm | Ra≤0.15μm Rz≤1.5μm | Ra≤0.15μm Rz≤1.5μm | Ra≤0.15μm Rz≤1.5μm |
| Warpage Degree | ≤3mm/M | ≤3mm/M | ≤3mm/M | ≤3mm/M |
| L/W Size Tolerance | ±1mm | ±1mm | ±1mm | ±1mm |
| Yield Strength | ≥1175 N/mm² | ≥1175 N/mm² | ≥520 N/mm² | ≥520 N/mm² |
| Tensile Strength | ≥1400 N/mm² | ≥1400 N/mm² | ≥520 N/mm² | ≥520 N/mm² |
| Hardness HRC | 50HRC±2 | 50HRC±2 | 44HRC±2 | 44HRC±2 |
| Work Temperature | ≤400℃ | ≤400℃ | ≤400℃ | ≤400℃ |
| Thermal Conductivity | ≥25W/MK at 300℃ | ≥25W/MK at 300℃ | ≥18W/MK at 300℃ | ≥18W/MK at 300℃ |
| Thermal Expansion Coefficient | 10~12 ×10⁻⁶/℃ | 10~12 ×10⁻⁶/℃ | 15~17 ×10⁻⁶/℃ | 15~17 ×10⁻⁶/℃ |
Applications
Also known as PCB laminated steel plate, PCB pressed steel plate, PCB partition steel plate, PCB mirror steel plates, or PCB pressing steel plate. Our high-precision lamination steel plates are widely used in various PCB laminators including BURKLE, LAUFFER, CEDAL, HELD, DATIAN, WEIDI, and DIPUER systems.
