Steel Material SUS630T With High Corrosion Resistance And Hardness Printed Circuit Board PCB/CCL Press Plate MKSP-S630T
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MKSP-S630T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | export package |
| Delivery Time: | 15days after getting the prepayment |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
|
Detail Information |
|||
| Steel Material: | SUS630T. | Normal Thickness (mm):: | 1.0, 1.2, 1.5, 1.6, 1.8, 2.0mm |
|---|---|---|---|
| Thickness Tolerance: | ±0.10 | Normal Sizes Of PCB Lamination Steel Plate/press Plate (L*W In Mm):: | 1500*1295/1300*800/1295*787/1295*1613/1295*1143/1295*787/1285*750/1280*1120/1280*1070/1280*970/1270*1118/1270*1070/1143*660/673*571/660*508/24"*28". |
| Normal Sizes Of Copper Clad Laminate CCL Lamination Steel Plate/press Plate (L * W In Mm):: | 1910*1270/2210*1270/2220*1270. | Models: | Mass Lam And Pin Lam Plate |
| Surface Roughness (um): | Ra≤0.15 Rz≤1.5 | Hardness HRC: | 50HRC±2 |
| Highlight: | SUS630T steel PCB press plate,corrosion resistant laminated steel plate,hardened CCL press plate MKSP-S630T |
||
Product Description

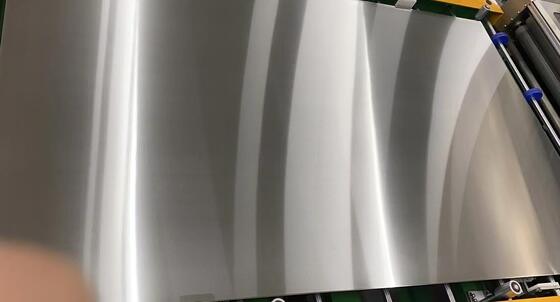

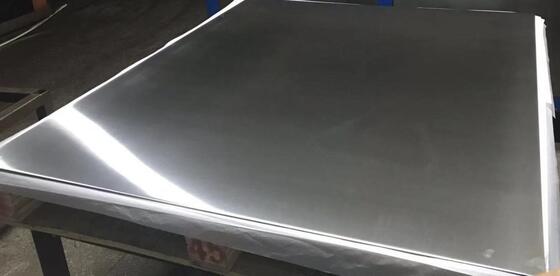

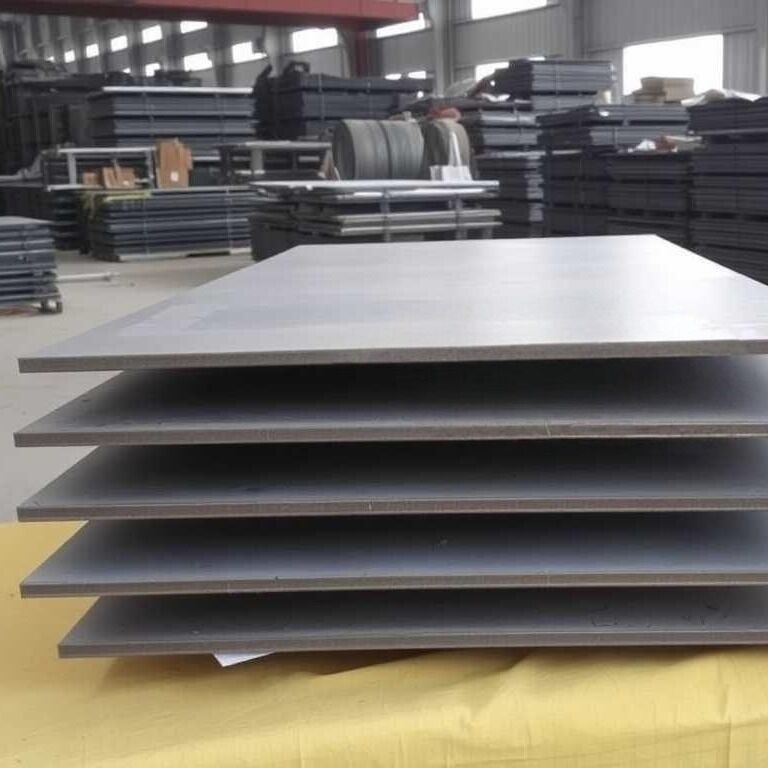

SUS630T Steel PCB/CCL Press Plate MKSP-S630T
The MKSP-S630T PCB/CCL Press Plate utilizes high-quality SUS630T steel material, offering exceptional corrosion resistance and hardness for printed circuit board and copper clad laminate lamination applications. This cost-effective solution delivers reliable performance with competitive pricing advantages.
Product Overview
Our PCB/CCL Press Plate ESSP-S630 is manufactured using premium SUS630T steel, providing outstanding quality reliability at competitive pricing. This high-precision lamination steel plate has proven reliable performance in PCB and CCL laminators.
| Specification | Details |
|---|---|
| Steel Material | SUS630T |
| Available Thickness (mm) | 1.0, 1.2, 1.5, 1.6, 1.8, 2.0 |
| PCB Press Plate Sizes (L×W mm) | 1500×1295, 1300×800, 1295×787, 1295×1613, 1295×1143, 1295×787, 1285×750, 1280×1120, 1280×1070, 1280×970, 1270×1118, 1270×1070, 1143×660, 673×571, 660×508, 24"×28" |
| CCL Press Plate Sizes (L×W mm) | 1910×1270, 2210×1270, 2220×1270 |
Key Features
- Competitive pricing with reliable lamination performance
- Superior thermal conductivity and thermal expansion coefficient for cost and energy savings
- High corrosion resistance and hardness
- Compatible with various lamination steel plate washing machines
Technical Specifications
| Parameter | Mass-Lam Plate | Pin-Lam Plate |
|---|---|---|
| Thickness | 1.0-2.0mm | 1.0-2.0mm |
| Width | ≤1300mm | ≤1300mm |
| Length | ≤2410mm | ≤2410mm |
| Thickness Tolerance | ±0.10mm | ±0.10mm |
| Surface Roughness | Ra≤0.15μm Rz≤1.5μm | Ra≤0.15μm Rz≤1.5μm |
| Positioning Hole Tolerance | -- | ±0.10mm |
| Bushing Slot Tolerance | -- | +0.10/-0mm |
| Warpage Degree | ≤3mm/M | ≤3mm/M |
| L/W Size Tolerance | ±1mm | ±1mm |
| Yield Strength | ≥1175 N/mm² | ≥1175 N/mm² |
| Tensile Strength | ≥1400 N/mm² | ≥1400 N/mm² |
| Extensibility | ≥5% | ≥5% |
| Hardness HRC | 50HRC±2 | 50HRC±2 |
| Work Temperature | ≤400℃ | ≤400℃ |
| Parallelism | ≤0.03 | ≤0.03 |
| Diagonal Deviation | 1-2mm | 1-2mm |
| Thermal Conductivity | ≥18W/MK at 300℃ | ≥18W/MK at 300℃ |
| Average Thermal Expansion Coefficient | 10~12 ×10⁻⁶/℃ | 10~12 ×10⁻⁶/℃ |
Applications
This product is also known as PCB laminated steel plate, PCB pressed steel plate, PCB partition steel plate, PCB steel press plate, PCB mirror steel plates, or PCB pressing steel plate.
